FamilyData SheetFrequency RangeOutputSupplyPackageFeatures / Series

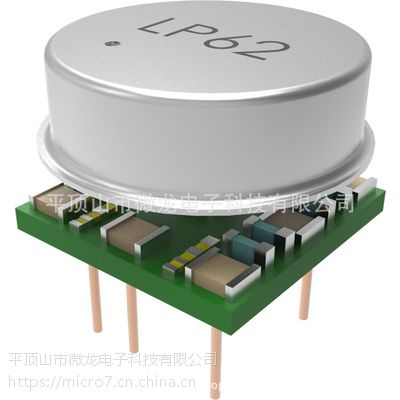

Low Power Half-DIP

PDF File 10 to 60 Mhz HCMOS 3.3v

5.0v 12.7mm x 12.7mm x 9.02mm - 135mW steady state power

- 350mW start-up power

- -125dBc/Hz @ 10Hz phase noise

- 0.5ppb/G acceleration sensitivity

Low Power 20x20mm

PDF File 10 to 60 Mhz HCMOS

SINE WAVE 3.3v

5.0v 20.6mm x 20.6mm x 14mm - 135mW steady state power

- 350mW start-up power

- -125dBc/Hz @ 10Hz phase noise

- 0.5ppb/G acceleration sensitivity

High Stability 26x26mm OCXO

PDF File 10 to 25 Mhz HCMOS 3.3v 26.04mm x 26.04mm x 13mm - 4ppb over -40 to 85C

- Quick Warm-Up Time

- Low Age Rates

- Low Phase Noise

- Surface Mountable Design

High Stability 22x25mm OCXO

PDF File 5 to 38 Mhz HCMOS 3.3v 22mm x 25.4mm x 13mm - 1ppb over -40 to 85C

- Quick Warm-Up Time

- Low Age Rates

- Low Phase Noise

- Surface Mountable Design

Poseidon Series

PDF File 5 to 130 MHz SINE WAVE 12v

15v 82.6mm x 114.3mm x 38.1mm

3.25" x 4.5" x 1.5" - Active and Passive Compensation for Best in Class Low g Performance

- Excellent Frequency Stability Over Temperature

- Superb Long Term Aging

- Typical Acceleration Sensitivity<0.02ppb/g

- Rugged Package

Poseidon 2

PDF File 5 to 130 MHz SINE WAVE 12v

15v 63.5mm x 68.6mm x 25.4mm

2.5" x 2.7" x 1" - Active and Passive Compensation in smaller SWAP configuration

- Excellent Frequency Stability Over Temperature

- Superb Long Term Aging

- Typical Acceleration Sensitivity<0.02ppb/g

- Rugged Package

Apollo Series

PDF File 30 to 130 MHz SINE WAVE 12v

15v 26.16mm x 26.16mm x 11.68mm

1.03" x 1.03" x 0.46" - Ultra Low Phase Noise

- Excellent Frequency Stability Over Temperature Range

- Standard Frequency 100 MHz

- Many Options Available Including Frequency Range of 30 - 130 MHz

Zeus Series

PDF File 30 to 130 MHz SINE WAVE 12v

15v 45.21mm x 75.44mm x 26.16mm

1.78" x 2.97" x 1.03" - Frequencies from 30 to 130 MHz

- Sine Wave Output

- Multiple phase noise options

- RoHS-6 / Lead-free Compliant Available

- Storage Temperature Range of -55??C to 125??C

- Hi-Rel Version Available on Request

N45T

PDF File 10 to 32 MHz HCMOS

SINE WAVE 3.3v

5.0v 25.4mm x 22mm x 11.43mm - 0.45" maximum height SMD-OCXO for base station, telecom infrastructure and network synchronization applications.

- Replaces N45Q

NV45G1480

PDF File 100 MHz SINE 12v 26.16mm x 25.4mm x 13.46mm

1.03" x 1.00" x 0.530" - Superior phase noise (-130 dbc/HZ at 100 HZ) combined with very tight stability ( less than +/- 200 ppb ) in a small 1" x 1" package.

NV4***A/AB

PDF File 5 to 20 Mhz HCMOS

SINE WAVE 5v

12v

15v 26.16mm x 26.16mm x 11.68mm

1.03" x 1.03" x 0.46" - Standard 1" x 1" footprint offering HCMOS output or very low noise sine wave output ( option c )

N*** Series

PDF File 10 MHz CMOS

SINE WAVE 3.3v

5.0v 25.00mm x 25.00mm x 12.50mm - Low Cost

- Excellent Frequency vs Temperature Stability

- Available with +3.3VDC or +5VDC

- Output Level CMOS or Sinewave

- EFC for Precision Frequency Setting

- RoHS 5

N1A Series

PDF File 12.8 to 40 MHz LVCMOS 3.3v 9.70mm x 14.60mm x 7.70mm

.381" x .575" x .303" - Frequencies from 12.8 to 40 MHz

- LVCMOS Output

- Standard Frequencies of 12.8MHz, 19.2MHz, 20.38MHz, and 38.88MHz, other frequencies available on request

- Storage Temperature Range of -55??C to 105??C

N4A Series

PDF File 10 MHz LVCMOS

HCMOS 3.3v

5.0v 20.50mm x 20.50mm x 10.0mm

or Surface Mount option available in a 22mm x 25.4mm package. - Low Cost

- Pin-Thru-Hole or SMT Configuration

- Excellent Frequency vs Temperature Stability

- Available with +3.3VDC or +5VDC

- Output Level LVCMOS or HCMOS

- EFC for Precision Frequency Setting

- RoHS 5

N4B

PDF File 8 to 30 Mhz LVCMOS

HCMOS 3.3v

5.0v 25.40mm x 22.00mm x 11.07mm

1.0" x .866" x .436" - Excellent Frequency vs. Temperature Stability

- Output Level LVCMOS or HCMOS

- EFC for precision frequency setting

- RoHS 5

N6A Series

PDF File 10 MHz HCMOS

LVCMOS

Sinewave 5v

12v 36.20mm x 27.30mm x 13.00mm - Low Cost

- Frequency vs Temperature Stability as low as +/-5ppb

- Available with +5VDC or +12VDC

- Output Level HCMOS, LVCMOS or sinewave

- RoHS 5

NVG47S

PDF File 5 to 13 Mhz HCMOS

SINE WAVE 5v

12v 36.2mm x 27.3mm x 14.35mm

1.42" x 1.07" x 0.565" - Standard Euro-style package offering either HCMOS or very low noise sine wave output ( option c )

N47x/NV47x

PDF File 5 to 100 MHz HCMOS

SINE WAVE 3.3v

5.0v

12v or 15v 36.10mm x 27.20mm x X.XX mm

1.421" x 1.071" 0.XXX" - Various frequency stabilities and Operating Temperature Range options

- HCMOS and Sine Wave Output

- Optional Case Height

- Storage Temperature Range of -55??C to 125??C

NV47AE/NVG47AE

PDF File 5 to 13 MHz HCMOS

SINE WAVE 5v

12v 36.20mm x 27.30mm x 12.70mm

1.425" x 1.075" x 0.5" - Frequencies from 5 to 13 MHz

- HCMOS and Sine Wave Output

- Multiple phase noise options

- RoHS-6 / Lead-free Compliant

- Storage Temperature Range of -55??C to 125??C

NV26AJ

PDF File 30 to 130 Mhz SINE WAVE 12v

15v 51.56mm x 51.56mm x 19.05mm

2.050" x 2.0507" x 0.75" #NAME?

NVG79D&E

PDF File 20 KHz to 54 MHz HCMOS

SINE WAVE 3.3v

5.0v

12v or 15v 27.58mm x 35.94mm x 20.57mm

1.086" x 1.415" x .810" - Low Input current during warm-up<250mA

- Warm-up Time as low as<10 Seconds

- Power Input at steady state.

NV79A

PDF File 10 to 50 Mhz HCMOS

SINE WAVE 3.3v

5.0v 20.8mm x 13.2mm x 12.7mm

0.82" x 0.52" x 0.50"

CO-02 pkg - Stratum 3 Compliant,

- Hermitic DIP OCXO

- NV79A

N06

PDF File 10 MHz SINE WAVE 5v 36.20mm x 27.30mm x 23.01mm

1.4250" x 1.075" x .906" - Available with +5VDC input supply voltage

- Sine Wave output available

- Frequency vs. Temp Stability as Low as +/- .4 ppb

NV79

PDF File 50 to 120 Mhz SINE WAVE 5.0v 20.8mm x 13.2mm x 12.7mm

0.82" x 0.52" x 0.50" - Excellent Phase Noise in a Miniature Package

- 100 MHz Standard Frequency

- Many Options Available Including Frequency Range of 50 - 120 MHz

- 3 Package Styles Available, Surface Mount, Through Hole or

Gull

N/NV47B

PDF File 5 to 13 MHz HCMOS

SINE WAVE 5v

12v 36.07mm x 27.18mm x 19.40mm

1.420" x 1.070" x 0.764" - Excellent frequency stability of 1 ppb -20 to 70

- Low power consumption of 4 watts at startup and 1.5 watts steady state.

- Low phase noise

- 5 or 12 volt supply

- 10 MHz standard frequency
